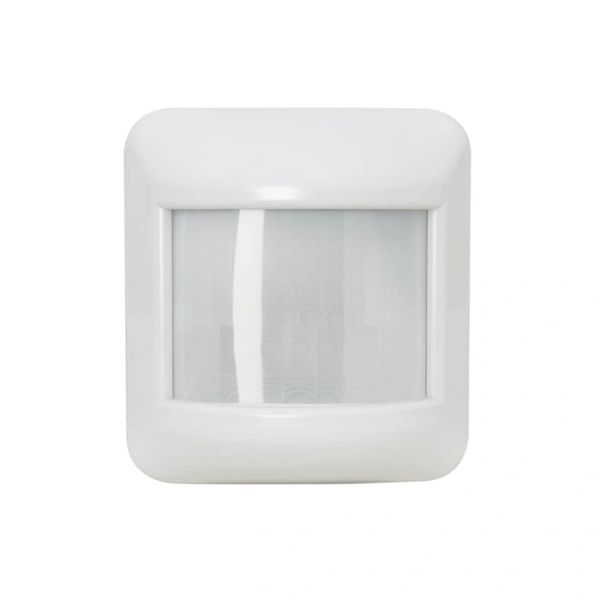

SensorWorx Occupancy Sensor - Dual Tech + Daylight Detection - 120° Wide View - High Humidity Environment - 120-277V

SensorWorx wall mount occupancy sensors are self-contained lighting control solutions that mount to the wall, corner, or ceiling. Using an adjustable angled bracket and multi-position chase stem, these sensors reduce contractor installation time and provide a secure and clean finished appearance. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.

Dual tech + daylight detection: sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified the sensor signals a connected power/relay pack to switch on the connected lighting. These SensorWorx units also come with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion will be limited. Additionally, daylight detection will turn off controlled lighting whenever there is sufficient ambient light in the space.

Line voltage sensors are self-contained units that directly power from and switch 120/277 VAC. Typically, they are used to control areas where a single sensor’s coverage area is sufficient for the entire space. Units can be parallel wired if necessary to increase coverage area for larger areas or longer hallways.

Wide View (120°) Coverage Pattern

Features Include:

• Digital passive infrared (PIR) detection
• Suitable for high-humidity environments
• Passive acoustic detection
• Ambient light override (photocell)
• Compact size and matte finish
• Electronically timed switching designed for LED fixture control
• Convenient test mode and adjustable time delays
• Can be mounted on ceiling via junction box

SensorWorx is committed to 100% USA based manufacturing

Need help deciding what switches or sensors work best for your application? Refer to Sensorworx's handy application guides:
